Cucumber_With_Better_Report

Reading Time: <5 Minutes

Integrating Rest Assured with Cucumber framework is quite easy in fact cucumber framework produce default report, but the challenging part is better readability of report, say for eg., what is the endpoint, request body, query param, response, etc., In this blog, we are going to see in detail about how to create better and quality report for Rest API automation.

Rest Assured Supporting Logs

Since from version 1.5 Rest Assured support Request and Response logging, this can be achieved as below in your Request and Response specification

Request Logging:

given().log().all(). .. // Log all request specification details including parameters, headers and body
given().log().params(). .. // Log only the parameters of the request
given().log().body(). .. // Log only the request body
given().log().headers(). .. // Log only the request headers
given().log().cookies(). .. // Log only the request cookies
given().log().method(). .. // Log only the request method
given().log().path(). .. // Log only the request path

Response Logging:

get("/x").then().log().body()
get("/x").then().log().ifError()
get("/x").then().log().all()

The above implementation in your code works like charm and produces detail logs which can be even written in the file. Please refer to the framework which has the same example Rest Assured Core + TestNG + Hamcrest

Filter Custom Logs

In this section, I’m going to explain how to implement custom logs and append in cucumber report.

What is Filter in Rest Assured?

A Filter is an interface that allows you to inspect and alter a request before it’s actually committed and also inspect and alter the response before it’s returned to the expectations. Filters can be used to implement custom authentication schemes, session management, logging, etc., Having said that, we do use Logging Filter to add custom report in our cucumber report.

RequestSpecification has a method name called “filter” which we can use to filter and generate custom logs for request and response object.

Filter

In order to generate custom logs, I’m implementing CustomLogFilter class which implement “Filter” interface that must expect to implement the following method.

ResponseFilter

So, the implementation of CustomLogFilter is as follow:

public class CustomLogFilter implements Filter {
    private StringBuilder requestBuilderLogs;
    private StringBuilder responseBuilderLogs;

    @Override
    public Response filter(FilterableRequestSpecification filterableRequestSpecification, FilterableResponseSpecification filterableResponseSpecification, FilterContext filterContext) {
        Response response = filterContext.next(filterableRequestSpecification, filterableResponseSpecification);
        requestBuilderLogs = new StringBuilder();
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Request method: " + objectValidation(filterableRequestSpecification.getMethod()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Request URI: " + objectValidation(filterableRequestSpecification.getURI()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Form Params: " + objectValidation(filterableRequestSpecification.getFormParams()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Request Param: " + objectValidation(filterableRequestSpecification.getRequestParams()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Headers: " + objectValidation(filterableRequestSpecification.getHeaders()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Cookies: " + objectValidation(filterableRequestSpecification.getCookies()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Proxy: " + objectValidation(filterableRequestSpecification.getProxySpecification()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("Body: " + objectValidation(filterableRequestSpecification.getBody()));
        requestBuilderLogs.append("\n");
        requestBuilderLogs.append("******************************");
        responseBuilderLogs = new StringBuilder();
        responseBuilderLogs.append("\n"+"\n"+"\n");
        responseBuilderLogs.append("Status Code: "+response.getStatusCode());
        responseBuilderLogs.append("\n");
        responseBuilderLogs.append("Status Line: "+response.getStatusLine());
        responseBuilderLogs.append("\n");
        responseBuilderLogs.append("Response Cookies: "+response.getDetailedCookies());
        responseBuilderLogs.append("\n");
        responseBuilderLogs.append("Response Content Type: "+response.getContentType());
        responseBuilderLogs.append("\n");
        responseBuilderLogs.append("Response Headers: "+response.getHeaders());
        responseBuilderLogs.append("\n");
        responseBuilderLogs.append("Response Body: "+"\n"+response.getBody().prettyPrint());
        return response;
    }

    public String getRequestBuilder() {
        return requestBuilderLogs.toString();
    }

    public String getResponseBuilder() {
        return responseBuilderLogs.toString();
    }

    public String objectValidation(Object o) {
        if (o == null)
            return null;
        else
            return o.toString();
    }

}

The above code would filter and build logs that are required. The objectValidation method returns null in case any of parameter in request specification not available otherwise return as string type.

How to Implement Custom Logs in Cucumber Report

Cucumber supports Hooks, which are blocks of code that run before and after the execution of each scenario in the feature file.

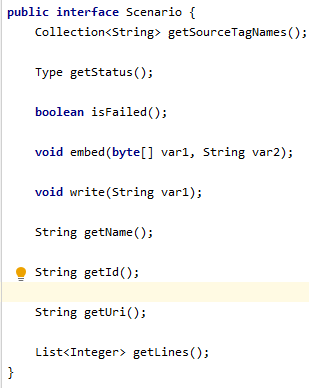

cucumber.api.Scenario

Scenario_Interface

Cucumber API provides an interface called Scenario which actually helps to achieve certain functions of pre and post-execution of scenarios. For eg.,

  • Current Scenario status (Pass/Fail): Type getStatus();
  • Attach Screenshot: void embed(byte[] var1, String var2);
  • Write text to Cucumber report: void write(String var1);

For Custom log generation on cucumber report, we use method “void write(String var1”

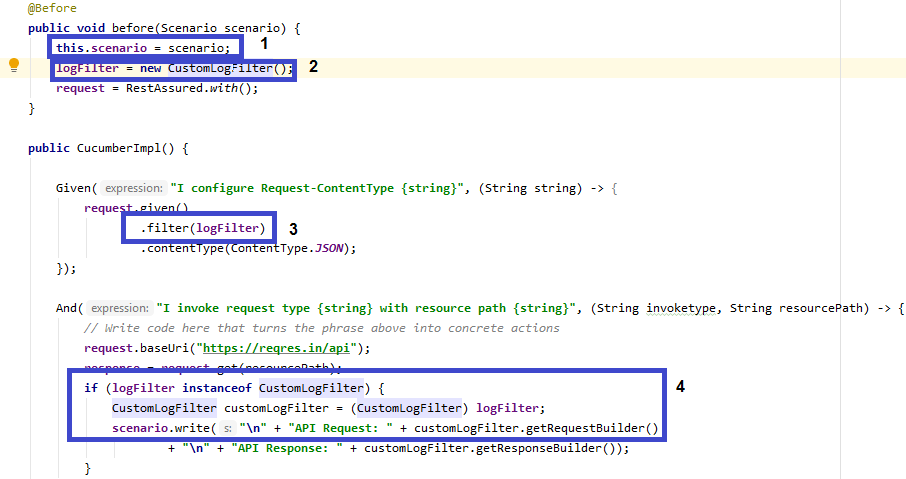

Custom_Log_Implementation

  1. Refers instance variable (scenario) of current class
  2. Instantiating CustomLogFilter Class and refer to logFilter which is Object of Filter Interface
  3. Initialized logfilter object in request specification
  4. Verifying logfilter is instance of CustomLogFilter and write custom logs that were built in requestBuilderLogs and responseBuilderLogs using scenario.write hooks (cucumber api). This must be implemented where exactly you invoke request type “GET, PUT, POST, DELETE” etc.,
  5. Run your cucumber test using maven and see the report gets generated with detail Rest API request and response specification.

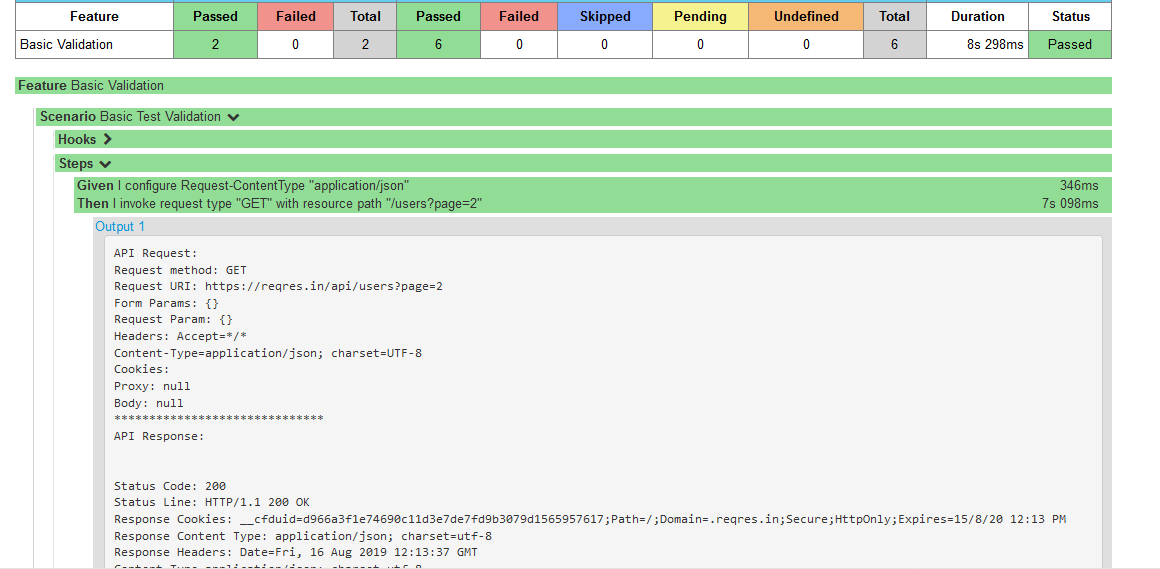

report1

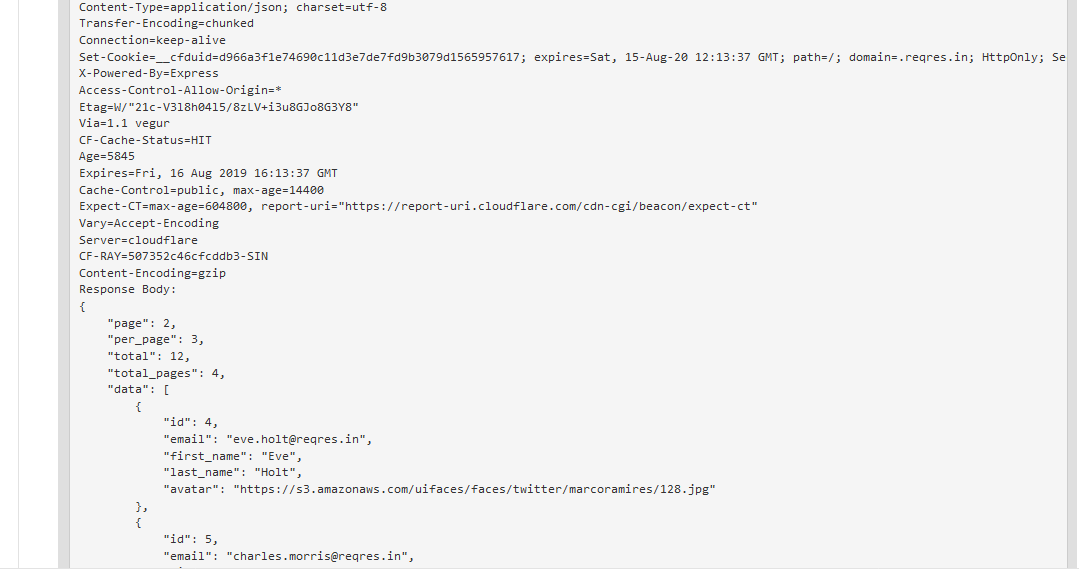

report2

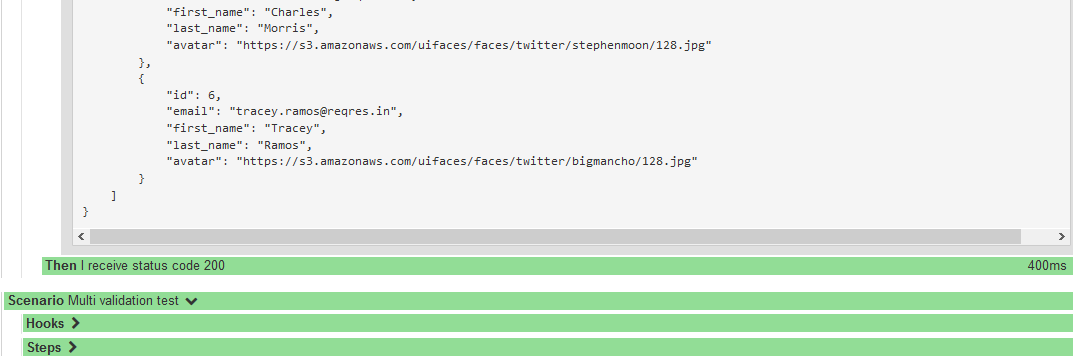

report3

Hope! The above cucumber report shows in detail and better readable for debugging and better logging mechanism.

To play with this sample framework, please feel free to visit GitHub: Clone from here

Thanks for your time, Please do subscribe for more updates!
